The Company Is Strong, With An Annual Production Capacity Of 36,000 Tons
Threaded Bushing Specification:
Threads: American National Standard Taper Pipe Threads,
NPT(ANSI/ASME B1.20.1-1983)
Also available in other thread forms: Rc, Rp, BSP, BSPT,BSPP and in any combination.
Threaded Bushing Material Grades:
Size
1/8″~4″ (DN6~DN100)
Class
2000 LBS, 3000 LBS, 6000 LBS
Type
Surface Treatment
Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Soldering,Darken,
Materal
Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel
Manufacturing process
Cutting, Heat treatment, Forging, Machining
Manufacturing Standards
ASME 16.11, GB/T14383-2018，BS-3799
Carbon Steel
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2
Stainless Steel
ASTM A182 F304, 304L, 316, 316L,310S, 316Ti,317L
Alloy Steel
ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91
Duplex & Super Duplex Steel
ASTM A 182 – F51, F53, F55, S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950.
Copper Alloy Steel
Copper Alloy Steel Forged Threaded 90 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
Nickel Alloy
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

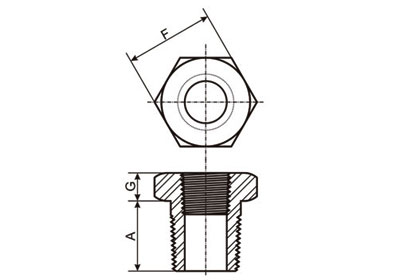

Hexagon Head Bushing

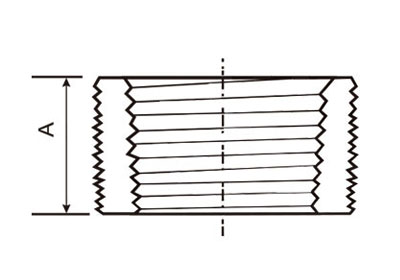

Flush Bushing
